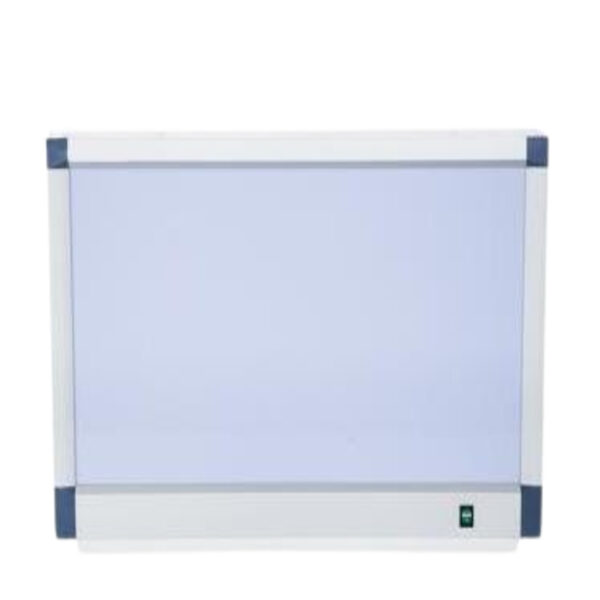

D2 – Super Thin LED Double Panel Film Viewer

  • Overall size (Height × width × thickness): 500 × 800 × 105
  • The screen size (Height × width): 420 × 720
  • Power (W): 90
  • Power: Can be tailored to different needs from different countries
  • The screen brightness: ≥ 2000 cd/m²
  • Color Temperature: ≥ 6500K
  • Uniformity of luminance: > 0.7
  • The stability of the brightness: < 2%
  • Light scattering coefficient: > 0.9
  • Installation method: Wall-hung
Request Quote
Category:

Description

Functions & Setup:

  • Sand-white cataphoresis alufer is used on the front and bottom frame.
  • Imported acrylic is used as screen, which ensures good light transmittance, high surface smoothness, soft light and long service life.
  • The customized electronic ballast and long-life light source design ensure uniform light and zero dark area.
  • Advanced built-in dark-type clip device ensures the convenience in inserting and taking of the radiographs and firmness.
  • Split design. The bottom and cover parts can be separated. The dark type self-locking device inside. Easy for maintenance.
  • Using T8 tubes, good light scattering performance.
  • LED tubes can be replaced.
