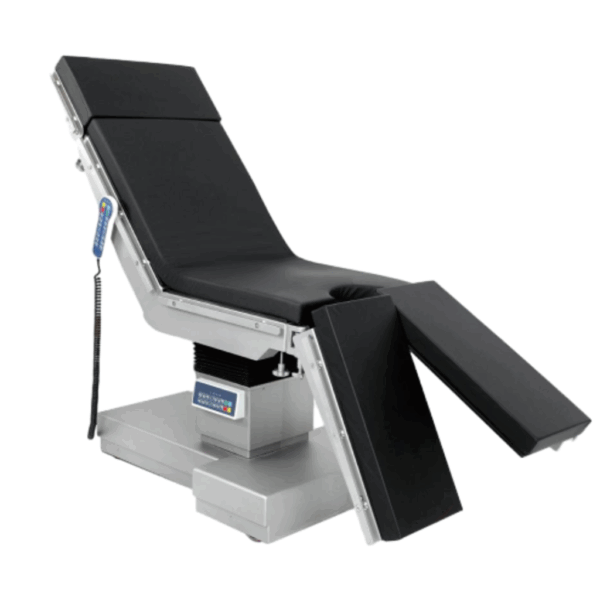

DST-IIIB (Electric Hydraulic Operation Table)

The controller device lock key protecting from misoperation.

The table is made of penetrable X-ray material, and there is a cassette guide rail under the table which allows radiography.

The table is fitted with a button that controls the electric wheel to draw in and out, making it easy to pull the table.

Accessories and guide rails are made of stainless steel and polyurethane material.

The main accessory hydraulic pump and electromagnetic valve are made of imported components from Taiwan.

The mattress is made of form polyurethane, resistant to acid and alkali, high temperature, and easy to clean.

The headboard and leg board use a special imported gas-spring from Germany, making them convenient to operate.

Description

Specification Datas
Table size 2100 × 500 mm
Height adjustable range 750–1000 mm
Trendelenburg > 22°
Reversed Trendelenburg > 22°
Lateral tilt Left ≥ 15°, Right ≥ 15°
Table surface sliding range 350 mm
Head Section adjustable range Up ≥ 45°, Down > 90°
Safe bearing load 240 kg
Back Section adjustable range Up > 45°
Leg Section adjustable range Up ≥ 45°, Down > 90°
Kidney bridge elevation ≥ 120 mm
Power supply 220V 50Hz
Battery Optional
Standard accessories Leg support – 1 pair, Arm supports – 1 pair, Shoulder and waist holders – 2 pairs, Anesthesia shelf – 1 pcs
