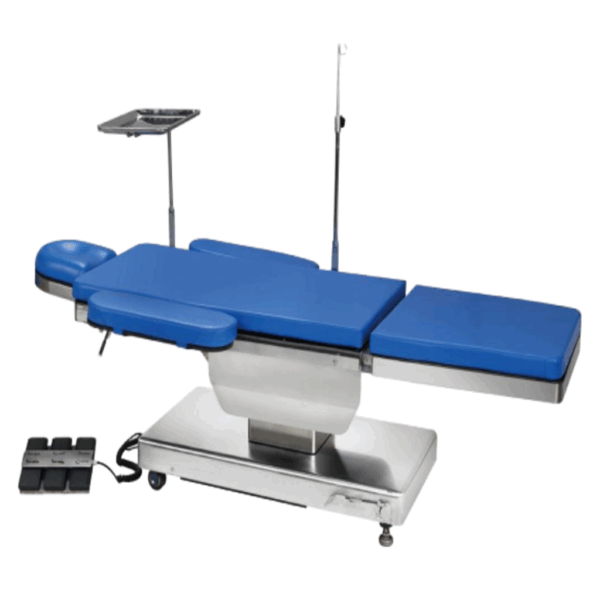

DST-IIG (Ophthalmological Operation Table)

Ophthalmological operating table

  • Foot switch: Several groups of different functions is convenient for operation by doctor.
  • Back plate and leg plate: Adopted the foot switch that enables flexible and smooth adjustments.
  • Head plate: Is easy to control by mechanical gear.

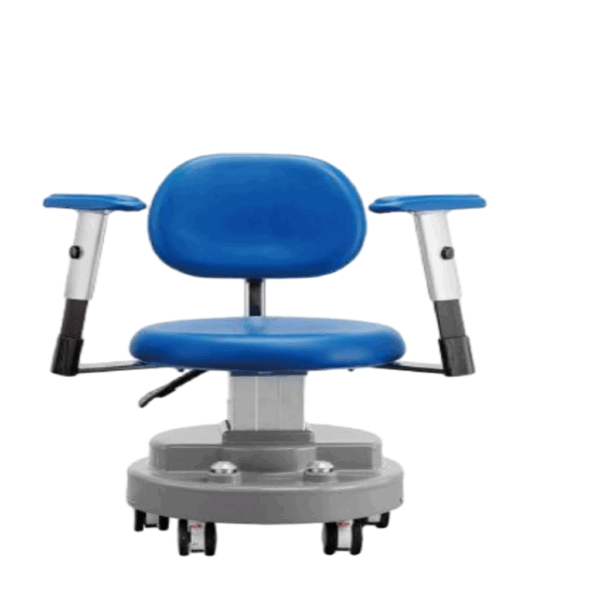

Electric chair

  • Adjustable armrest support with rotation 180°.
  • Adjustable backrest in height.
  • Chair elevation (up/down): Two buttons on the chair base, the doctor can be adjusted by foot.
Request Quote
Categories: ,

Description

Chair

Specification Datas
Table width > 420 mm
Table minimum/lift stroke < 460 mm / > 140 mm
Backrest 1
Recharger 1
Instruction 1
Product three guarantees 1

DST-IIG

Specification Datas
Table length/width ≥ 2080 / ≥ 550 mm
Table minimum/lift stroke ≤ 500 / ≥ 200 mm
Head plate folding up/down angle > 45° / > 90°
Leg plate up/down fold > 30° / > 30°
Back plate folding/folding angle > 45° / > 80°
Power supply voltage 220V
Power supply frequency 50Hz
Power supply capacity 1.0 kW
Shelf 2 pieces
Foot switch 1
Brine rack A root
Operating table instruction 1
Product three guarantees 1
