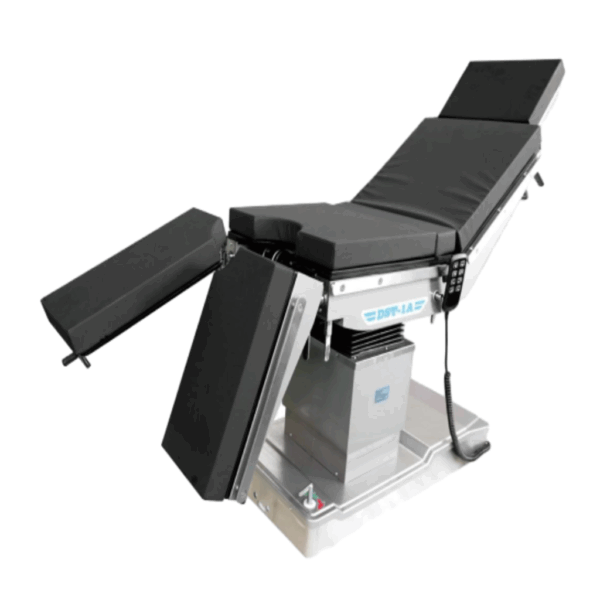

DST-1A (Electric Operation Table)

This type of operating table is suitable for the operation of any part of the human body. Besides having all the functions of a multi-purpose operating table, it has unique advantages of its own. For example, the leg panel can be disassembled and easily adjusted, which is excellent for urology operations. The table board can be translated to a great degree, and a high-strength transparent board is adopted on the table panel, which is very convenient for X-ray examinations; the back panel can be folded upward, which overcomes the defects caused by translation. All the movements of the table are controlled by an electric drive pusher with safety and reliability. This operating table can be matched with osteology support, especially for C-arm.

Description

Specification Datas
Table size 1950 × 550 mm
Height adjustable range 660–910 mm
Trendelenburg ≥ 20° ± 2°
Reversed Trendelenburg ≥ 20° ± 2°
Lateral tilt Left ≥ 20° ± 2°, Right ≥ 20° ± 2°
Table surface sliding range 350 mm
Head Section adjustable range Up ≥ 45°, Down > 90°
Safe bearing load 200 kg
Back Section adjustable range Up ≥ 70°, Down > 20°
Leg Section adjustable range Up ≥ 45°, Down > 90°
Kidney bridge elevation ≥ 120 mm
Power supply 220V 50Hz
Battery Optional
Standard accessories Leg support – 1 pair, Arm supports – 1 pair, Shoulder and waist holders – 2 pairs, Anesthesia shelf – 1 pcs
