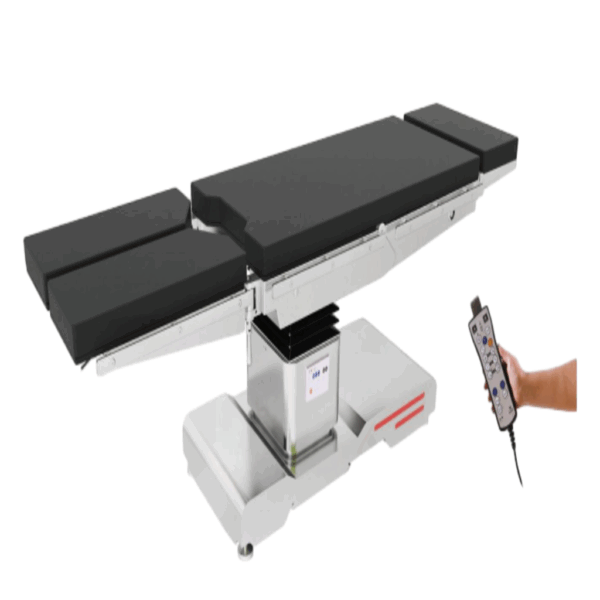

DST-800A (Electric Hydraulic Operation Table)

Applying the design concept of combining modern and human nature, adopting electro-hydraulic transmission technology, following the trend of clinical surgery development, and meeting the requirements of image observation and diagnosis in the current surgical process. The product has the advantages of simple operation, strong versatility and wide application. Material selection, fine workmanship, quality to reach the international level. Fully meet the general surgery, heart, kidney, cardiopulmonary bypass, thyroid, head and neck, gallbladder and chest, urology, rectum, gynecology, orthopedics, spine and other surgical requirements.

Description

Specification Datas
Bed length 2120mm (including head plate) X 590mm width
Torgum 570mmX Width 530mm (without side rails) 590mm (with side rails)
Seat plate 575mmX Width 530mm (without side rails) 590mm (with side rails)
Leg plate 600mmX Width 250mm (without side rails) 280mm (with side rails)
Cephalic plate 300mmX Width 500mm
Height of bed from ground Conventional 660mm~1000mm±20mm
Lifting stroke 340±20 mm
Longitudinal transalation stroke 300 ±20 mm
Head and foot tilt Head tilt: 25±2° Foot tilt: 25±2°
Left and right Angle Left tilt: 22±2° Right tilt 22±2°
Back rake Angle Top fold 165±2° Bottom fold 20±2°
Angle the leg plate up and down Top fold 28±2° Bottom fold 90±2°
Leg plate outside Angle Folding 90±2°
Cephalic plate Top fold: 30±2° Bottom fold 90±2°
Waist bridge Rising height: 110±5mm (standard optional)
