Description
HM3200 Mechanical brake
Pendants applied area: operation theatre, ICU

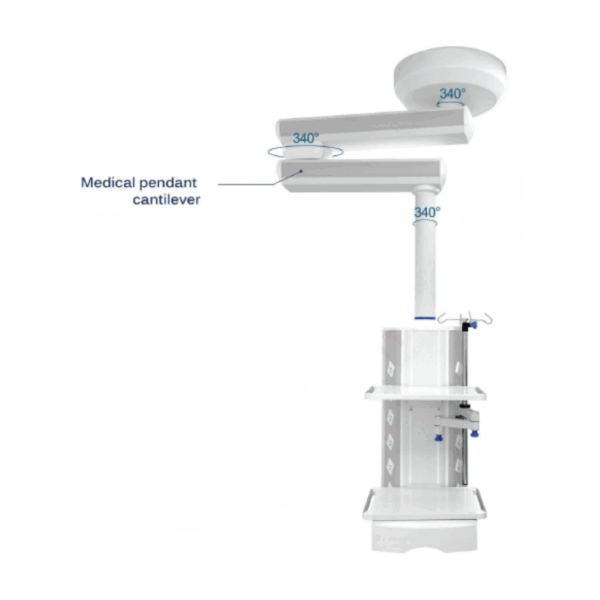

Adopted by 340° ceiling suspending way, rotating angle 340°
The pendant is adopted by the mechanical brakes.
The tray height is adjustable, and gas terminals are optional (GB, DIN, US, BS), with optional power sockets (GB Class 3 general)
Function column height is customized (height: 600mm~1000mm)
Updated options (monitor bracket, display bracket, LED surgical examination lights, IV poles, straight plug or hanging flowmeter)

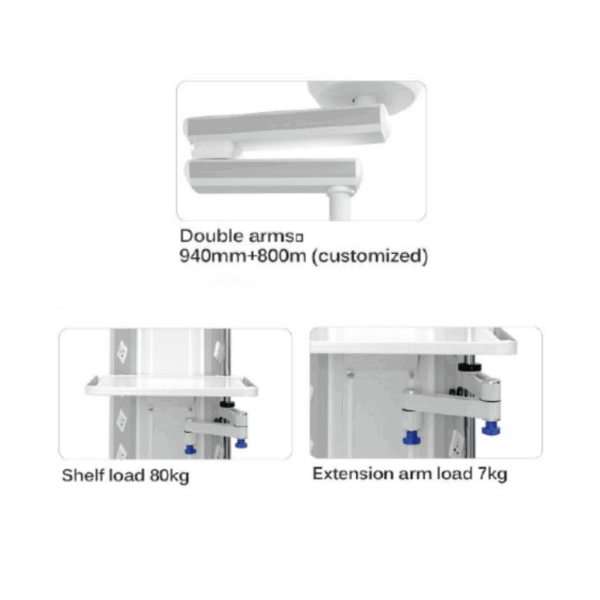

Pendants cantilever: double arms 940mm+800mm (effective extended arm 1300mm) — Revise according to actual dimension
| Specification | Datas |
|---|---|
| Max. load (kg) | 270 |
| Gas terminal | O₂/VAC/AIR/N₂O/CO₂/N₂/AGSS (Optional) |
| Power socket | 220V 50Hz 10A |
| Equipotential ground | Equivalent potential port × 2 |
| Intercom interface | RJ45 (6 types) |
| Instrument platform | Instrument platform 2 layers |
